Pneumatic

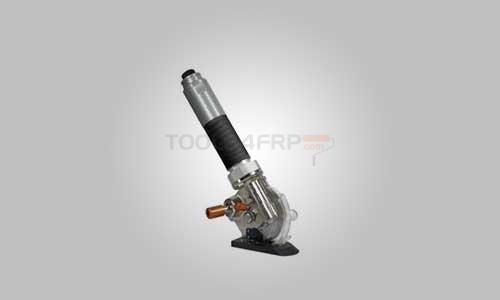

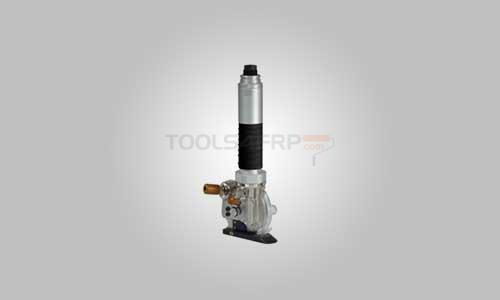

FP861V2 / FP861A2
Specifications
Blade Diameter
Blade Description
Blade Speed
Cutting Ability
Power
Working pressure
Air Consumption
Sound Pressure
Total Weight (with packaging)
Description
86 mm ( 3.4’’ )
86THSS, 8-edges, HSS steel
900 rpm*
25 mm (1’’)
400 W (at nominal air supply conditions)*
6 bar* (±1 bar) with lubricated air
9 l/sec*
72 dB (EN ISO 15744)*
3000 g
* FP861V2: right side version / FP861A2: left side version (specular)
*The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
*The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
Blades
Product Code
86PHSS
86THSS
86PHSSTF
86THSSTF
86THSSTN
86TMD
Description
5-edges, HSS steel
8-edges, HSS steel
5-edges HSS steel Teflon®
86PHSS, 8-edges, HSS steel
86PHSS, 8-edges, HSS steel
86PHSS, 8-edges, HSS steel
Suitability
Suitable for technical textiles, moquettes, carpets and leather
Suitable for any kind of material and for leather.
Suitable for adhesive, glued materials and carpets with rubber backing
Suitable for adhesive or glued materials
TiCn coating helps to have stronger surface of the blade and of cutting edge.
Suitable for abrasive and composite materials, like fiberglass, carbon fiber or Kevlar. The blade shall be always sharpened by the diamond stone.

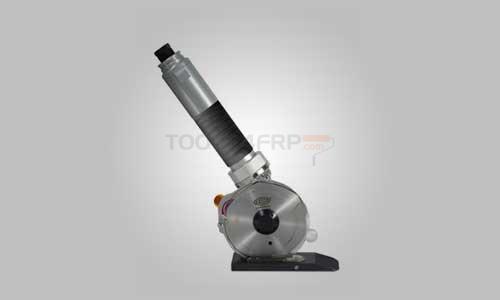

FP100 / FP100L
Specifications
Blade Diameter
Blade Description
Blade Speed
Cutting Ability
Power
Working pressure
Air Consumption
Sound Pressure
Total Weight (with packaging)
Description
100 mm ( 4’’ )
10EHSS, 6-edges, HSS steel
900 rpm*
35 mm (1.4’’)
400 W (at nominal air supply conditions)*
6 bar* (±1 bar) with lubricated air
9 l/sec*
72 dB (EN ISO 15744)*
3050 g
* FP100: right side version / FP100L: left side version (specular)
* The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
* The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
Blades
Product Code
10EHSS
10CSW
10SEXTG
10EHSSTF
10EMD
Description
6-edges HSS steel
circular HSS steel
4-edges EXTRA steel
6-edges HSS steel Teflon® coated
6-edges Carbide (Widia®) blade
Suitability
All kind of materials
Suitable for textiles, natural fibers, sponges and filters
Suitable for hard material and flooring
Suitable for adhesive, glued materials and carpets with rubber backing
Suitable for abrasive and composite materials, like fiberglass, carbon fibre or Kevlar. The blade shall be always sharpened by the diamond stone
FP120M / FP120SM
Specifications
Blade Diameter
Blade Description
Blade Speed
Cutting Ability
Power
Working pressure
Air Consumption
Sound Pressure
Total Weight (with packaging)
Description
120 mm ( 4.7’’ )
12SHSS, 8-edges, HSS steel
550 rpm*
50 mm (2’’)
800 W (at nominal air supply conditions)*
6 bar* (±1 bar) with lubricated air
18 l/sec*
72 dB (EN ISO 15744)*
6000 g
* FP120M: right side version / FP120SM: left side version (specular)
* The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
* The reported data are collected at a pressure of 6 bar (ISO 2787: 1984), recommended operating pressure
Blades
Product Code
12SHSS
12CHSS
12SHSSTF
12SHSSTN
12SMD
Description
Ø 120 mm, 8-edges HSS steel
Ø 120 mm, circular HSS steel
Ø 120 mm, 8-edges HSS steel Teflon® coated
Ø 120 mm, 8-edges HSS steel coated for 1-3mm thickness of Titanium Carbonitride (TiCN)
Ø 120 mm, 8-edges Carbide (Widia®) blade in sintered material in accordance to ISO K25. Material is made of 91% Tungsten carbide (WC) and 9% Cobalt (Co)
Suitability
All kind of materials
Textiles, natural fibres, sponges and filters
Adhesive, glued materials and carpets with rubber backing
Microhardness HV 3000-4000. Coefficient of friction (vs 100Cr6) 0,45. Good duct and abrasive wear resistance. TiCn coating helps to have stronger surface of the blade and of cutting edge
This combination of materials is well-balanced in terms of hardness (life) and toughness (less breakage). Suitable for abrasive and composite materials, like fiberglass, carbon fibre or Kevlar. The blade shall be always sharpened by the diamond stone
